CL1324 & CL1325 & CL1326
Specification:
Input
Voltage: AC200-240V 50/60Hz
Shape
Color: White
Rate
Power: 12W & 18W & 24W
Plate housing Size: Dia.260mm & Dia.320mm & Dia.380mm
Dimmable : Available
CCT: 3000K / 4200K / 6500K 3in1
PF : 0.95
Efficacy : 80Lumen/W
LED : SMD 2835 LED
CRI : 82
Material : Steel Plate +PMMA Diffuser
Installation: Surface mounted
Protection: ClassⅠ
IP
Rating : IP20 or IP44
Microware Sensor : Available
CL1319 & CL1320 & CL1321
Specification:
Input Voltage: AC200-240V 50/60Hz
Shape Color: Brushed
Aluminium
Rate Power: 12W &
18W & 24W
Size: Dia.325mm & Dia.395mm & Dia.460mm
Dimmable & Sensor: Available
PF : 0.95
Efficacy : 85Lumen/W
LED : SMD 2835 LED
CCT : 3000K / 4200K / 5000K / 6500K
CRI : 82
Material : Steel Plate
+PMMA Diffuser
Installation: Surface
mounted
Protection: ClassⅠ
IP Rating : IP20 or IP44
CL1316 & CL1317 & CL1318
Specification :
Input Voltage: AC200-240V 50/60Hz
Shape Color: White
Rate
Power: 12W &
18W & 24W
Size: Dia.290mm & Dia.350mm & Dia.415mm
Dimmable & Sensor : Available
PF : 0.95
Efficacy : 90Lumen/W
LED : SMD 2835 LED
CCT : 3000K / 4200K / 5000K / 6500K
CRI : 82
Material : Steel Plate +PMMA Diffuser
Installation: Surface mounted
Protection:
ClassⅠ
IP Rating : IP20 or IP44
CL1310 & CL1311
Specification :
|
Code |
CL1310 |
CL1311 |
|
|
Shape Color |
Milky cover with Sliver ring |
||
|
Size |
Dia.330mm |
Dia.430mm |
|
|
Power |
18W |
24W |
|
|
PF |
0.9 |
||
|
Input Voltager |
AC100-240V |
||
|
Efficacy (lm/W) |
85lm/W |
||
|
LUMENS: |
1600LM |
2100LM |
|
|
LAMP: |
SMD LED |
||
|
CCT |
3000K / 4200K / 5000K/ 6500K |
||
|
CRI |
80 |
||
|
Material |
Steel plate + PMMA Diffuser |
||
|
Installation |
Surface mounted |
||
|
IP Rating |
IP44 |
||
CL1305 & CL1306
Specification :
|
Code |
CL1305 |
CL1306 |
|
|
Shape Color |
Brushed Nickel |
||
|
Size |
Dia.320mm |
Dia.380mm |
|
|
Power |
18W |
24W |
|
|
PF |
0.9 |
||
|
Input Voltage |
AC200-240V |
||
|
Efficacy (lm/W) |
75lm/W |
||
|
LUMENS: |
WW 1250LcM CW 1350LM |
WW 1600LM CW 1750LM |
|
|
LAMP: |
SMD LED |
||
|
CCT |
3000K / 4200K / 5000K/ 6500K |
||
|
CRI |
80 |
||
|
Material |
Steel plate + PMMA Diffusecr |
||
|
Installation |
Surface mounted |
||
|
IP Rating |
IP20 / IP44 |
||
CL1307 & CL1308 & CL1309
Specification:
Input Voltage: AC200-240V 50/60Hz
Shape Color: Brushed Aluminium
Rate Power: 12W & 18W & 24W
Size: Dia.260mm & Dia.320mm & Dia.380mm
Dimmable : Available
PF : 0.95
Efficacy : 80Lumen/W
LED : SMD 2835 LED
CCT : 3000K / 4200K / 5000K / 6500K
CRI : 82
Material : Steel Plate +PMMA Diffuser
Installation: Surface mounted
Protection: ClassⅠ
IP Rating : IP20 or IP44

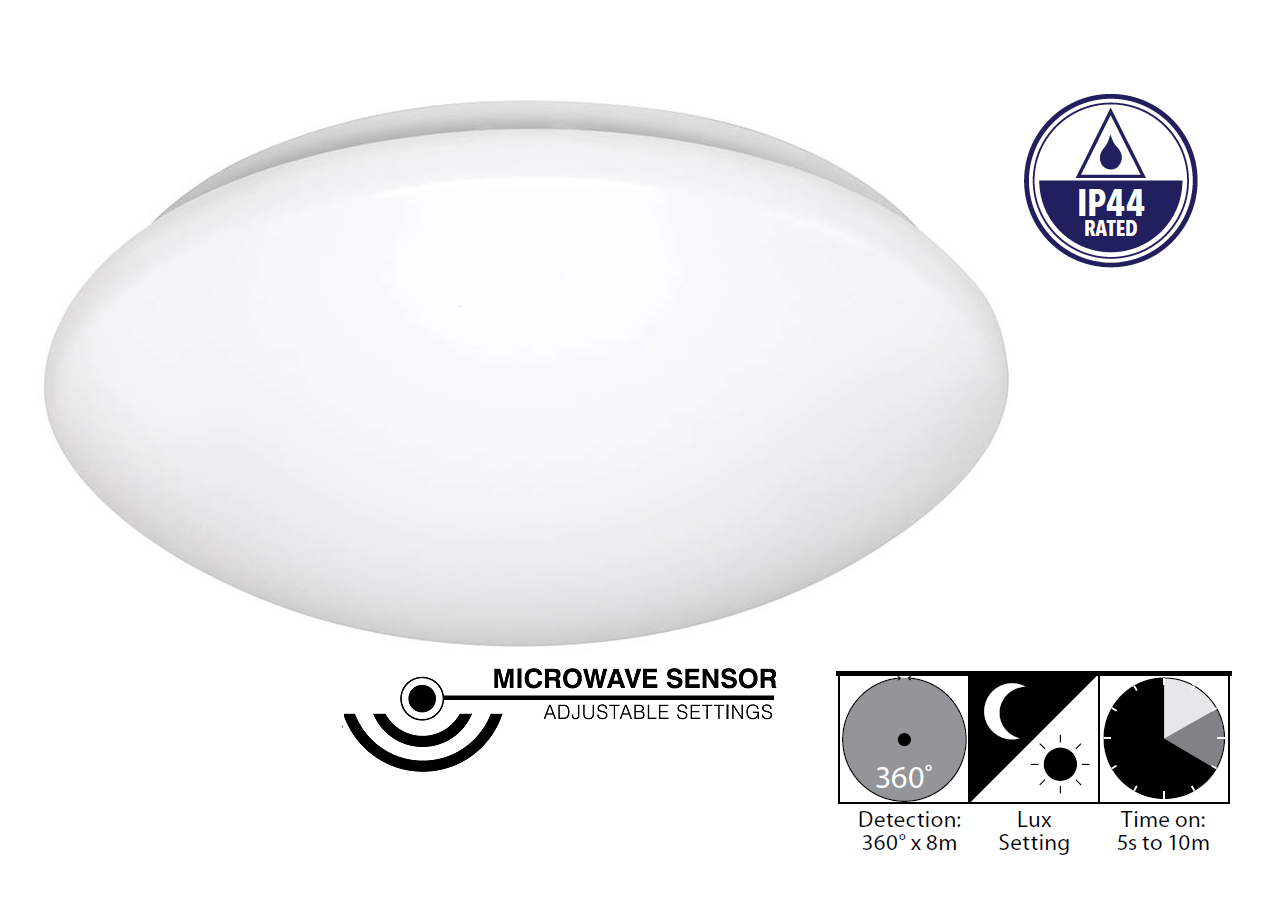

Microware Sensor : YES
Detection range：2m, 5m, 8m
Timer setting：5 seconds to 10 minutes
(5sec, 30sec, 90sec, 3min, 5min, 10min)
Lux level sensing：5lux, 30lux, 150lux, 2000lux
CL1301 & CL1302 & CL1303
Specification:
Input
Voltage: AC200-240V 50/60Hz
Shape
Color: White
Rate
Power: 12W & 18W & 24W
Size: Dia.260mm & Dia.320mm & Dia.380mm
Dimmable : Available
PF : 0.95
Efficacy : 80Lumen/W
LED : SMD 2835 LED
CCT : 3000K / 4200K / 5000K / 6500K
CRI : 82
Material : Steel Plate +PMMA Diffuser
Installation: Surface mounted
Protection: ClassⅠ
IP
Rating : IP20 or IP44
Microware Sensor : Available
CL1314 & CL1315
Specification
Input Voltage: AC200-240V 50/60Hz
Shape Color: White
Rate Power: 15W & 24W
Size: Dia. 200mm & Dia.300mm
Dimmable : YES
PF : 0.95
Efficacy : 90Lumen/W
LED : SMD 2835 LED
CCT Changing: 3000K / 4200K / 6500K 3 in 1
CRI : 82
Material : Plastic housing +PMMA Diffuser
Installation: Surface
mounted
IP Rating : IP54
