FL1635
Specification:
|
Code |
FL1635 |
|
Shape Color |
Black /Grey |
|
Product size(mm) |
452*320*185 |
|
Power（W） |
200W |
|
PF |
>0.9 |
|
Input Voltage (V) |
100-240V 50/60Hz |
|
Efficacy (lm/W) |
85lm/W |
|
Lumens |
17000LM |
|
Lamps |
COB LED |
|
CCT(K) |
3000K / 4200K / 5000K/ 6500K |
|
CRI |
80 |
|
Beam angle |
100℃ |
|
Material |
Die-Casting Aluminium + tempered glass |
|
Working Temp. |
-30°C ~ +50°C |
|
Installation |
Surface mounted |
|
IP Rating |
IP65 |
|
Warranty |
3 Years |
FL1606 & FL1607 & FL1608
Product Features:
Input voltage: 200~240V AC 50/60Hz
Material：Die-Casting Aluminium + tempered glass
Wattage: 20W & 30W & 50W
Power factor: 0.95
Efficacy (lm/W)：100LM/W
Lamp: COB LED
CCT: 3000K/ 42000K / 5000K / 6500K
CRI：>83
Beam angle：90-100 degree
Life time: 35,000hrs
SAA approved LED driver and Flex with Plug
Working Temp. -30°C ~ +50°C
Installation：Surface Mounted
Sensor: Yes
Detection angle:180°
Detection Distance:12m
Delay time:10sec-10 min
IP Rating:IP65
Warranty:3 Years
FL1614 & FL1615 & FL1616
Product Features:
Input voltage: 200~240V AC 50/60Hz
Material：Die-Casting Aluminium + tempered glass
Wattage: 20W & 30W & 50W
Power factor: 0.95
Efficacy (lm/W)：100LM/W
Lamp: COB LED
CCT: 3000K/ 42000K / 5000K / 6500K
CRI：>83
Beam angle：90-100 degree
Life time: 35,000hrs
SAA approved LED driver and Flex with Plug
Working Temp. -30°C ~ +50°C
Installation：Surface Mounted
Sensor: Yes
Detection angle:180°
Detection Distance:12m
Delay time:10sec-10 min
IP Rating:IP65
Warranty:3 Years
FL1609
Specification:
|
Code |
FL1609 |
|
Shape Color |
Black /Grey |
|
Product size(mm) |
385*285*175 |
|
Power（W） |
100W |
|
PF |
>0.9 |
|
Input Voltage (V) |
100-240V 50/60Hz |
|
Efficacy (lm/W) |
95lm/W |
|
Lumens |
9500LM |
|
Lamps |
COB LED |
|
CCT(K) |
3000K / 4200K / 5000K/ 6500K |
|
CRI |
80 |
|
Beam angle |
100℃ |
|
Material |
Die-Casting Aluminium + tempered glass |
|
Working Temp. |
-30°C ~ +50°C |
|
Installation |
Surface mounted |
|
IP Rating |
IP65 |
|
Warranty |
3 Years |

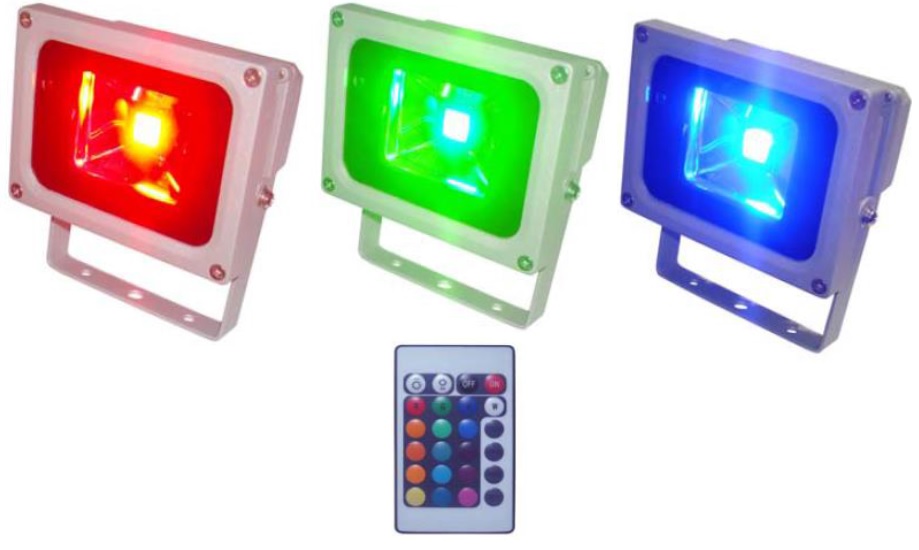

FL1634
Specification:
|
Code |
FL1634 |
|
Shape Color |
Black /Grey |
|
Product size(mm） |
115*87*85 |
|
Power（W） |
R: 3*1W G: 3*1W B: 3*1W W: Max 10W |
|
Input Voltage (V) |
AC 100-240V 50/60Hz |
|
Efficacy (lm/W) |
90lm/W |
|
Lumens |
R>75lm G>90lm B>22lm W>180lm |
|
Lamp |
COB LED |
|
CCT（K） |
3000K / 4200K / 5000K/ 6500K |
|
CRI |
80 |
|
Beam angle |
100℃ |
|
Material |
Die-Casting Aluminium Tempered glass |
|
Working Temperature |
-30°C ~ +50°C |
|
Installation |
Surface mounted |
|
IP Rating |
IP65 |
|
Protection: |
Class I |
|
Warranty |
3 Years |
|
Remote Control Type |
Infra-red Remote Control |
|
Range: |
Approx 12m+ in line of sight |
|
Remote Control Battery |
CR2025 3V |
FL1601
|
Code |
FL1601 |
|
Shape Color |
Black /Grey |
|
Product size(mm) |
115*87*85mm |
|
Power（W） |
10W |
|
PF |
>0.9 |
|
Input Voltage (V) |
AC 85-265V 50/60Hz |
|
Efficacy (lm/W) |
90lm/W |
|
LUMENS: |
850LM-900LM |
|
LAMP: |
SMD LED |
|
CCT（K） |
3000K / 4200K / 5000K/ 6500K |
|
CRI |
80 |
|
Beam angle |
100℃ |
|
Material |
Die-Casting Aluminium Tempered glass |
|
Working Temperature |
-30°C ~ +50°C |
|
Installation |
Surface mounted |
|
IP Rating |
IP65 |
|
Warranty |
3 Years |
FL1602 & FL1603 & FL1604
Product Features:
Input voltage:
200~240V AC 50/60Hz
Material：Die-Casting Aluminium + tempered
glass
Wattage: 20W &
30W & 50W
Power factor: 0.95
Efficacy (lm/W)：100LM/W
Lamp: COB LED
CCT: 3000K/ 42000K
/ 5000K / 6500K
CRI：>83
Beam angle：90-100 degree
Life time:
35,000hrs
SAA approved LED
driver and Flex with Plug
Working Temp. -30°C ~ +50°C
Installation：Surface Mounted
IP Rating:IP65
Warranty: 3 Years
FL1633
Specification:
|
Code |
FL1633 |
|
Shape Color |
Black /Grey |
|
Product size (mm) |
385*285*175 |
|
Power（W） |
100W |
|
PF |
>0.9 |
|
Input Voltage (V) |
100-240V 50/60Hz |
|
Efficacy (lm/W) |
100lm/W |
|
LUMENS: |
9500LM |
|
LAMP: |
SMD LED |
|
CCT（K） |
3000K / 4200K / 5000K/ 6500K |
|
CRI |
80 |
|
Material |
Die-Casting Aluminium Tempered glass |
|
Working Temp. |
-30°C ~ +50°C |
|
Installation |
Surface mounted |
|
IP Rating |
IP65 |
FL1611 & FL1612 & FL1613
Specification:
|
Code |
FL1611 |
FL1612 |
FL1613 |
|
Shape Color |
Black /Grey |
||
|
Product size(mm) |
180*140*95 |
225*185*112 |
285*235*140 |
|
Power（W） |
20W |
30W |
50W |
|
PF |
>0.9 |
||
|
Input Voltage (V) |
100-240V 50/60Hz |
||
|
Efficacy (lm/W) |
100lm/W |
||
|
LUMENS: |
2000LM |
3000LM |
5000LM |
|
LAMP: |
SMD LED |
||
|
CCT（K） |
3000K / 4200K / 5000K/ 6500K |
||
|
CRI |
80 |
||
|
Material |
Die-Casting Aluminium Tempered glass |
||
|
Working Temp. |
-30°C ~ +50°C |
||
|
Installation |
Surface mounted |
||
|
IP Rating |
IP65 |
||
|
Warranty |
3 Years |
||
