CL1324 & CL1325 &CL1326 -CCT LED Oyster Ceiling Lights

Item number: CL1324 & CL1325 & CL1326

Specification:

Input Voltage: AC200-240V  50/60Hz

Shape Color: White

Rate Power:  12W & 18W & 24W

Plate housing Size: Dia.260mm & Dia.320mm & Dia.380mm

Dimmable : Available

CCT: 3000K / 4200K / 6500K 3in1

PF : 0.95

Efficacy : 80Lumen/W

LED : SMD 2835 LED

CRI : 82

Material : Steel Plate +PMMA Diffuser

Installation: Surface mounted

Protection:  ClassⅠ

IP Rating : IP20 or IP44

Microware Sensor : Available



Description Downloads

Specification

Code

Size

(mm)

Watt

(W)

CCT & Lumens

CRI

PF

Protection

CL1324

260mm

12W

3000K  850LM

4200K  950LM

6500K  900LM

82

0.95

Class I

 CL1325

320mm

18W

3000K  1250LM

4200K 1350LM

6500K  1300LM

CL1326

380mm

24W

3000K  1600LM

4200K 1800LM

6500K  1700LM


Feature:


• Ideal for kitchens, hallways and high traffic areas

• Surface mounted LED ceiling light.
• Simple, round design.

• Provides a uniform light-output using SMD LED technology.

• Color temp. changing ,3000K/4200K/6500K in one light.

• IP20 / IP44

• Steel base with toughened acrylic diffuser.

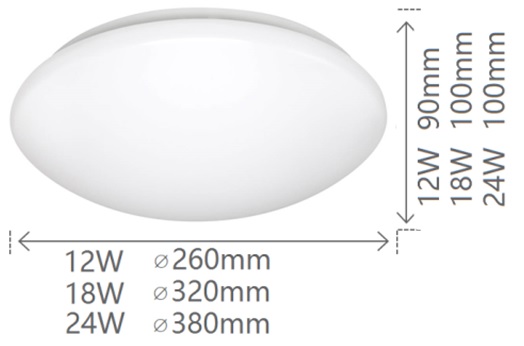

Dimension:




Packing:



Code

NW/PCS

(KG)

Color box

(mm)

Qty / CTN

GW/ CTN
(KG)

Outer Carton

 (mm)

CL1301

0.44

L300×W100×H300

8 PCS

6.70

L620×W420×H330

CL1302

0.58

L370×W110×H370

6 PCS

7.00

L680×W390×H400

CL1303

0.8

L420×W115×H420

6 PCS

9.20

L710×W440×H450
