HB1714

Quick View

×

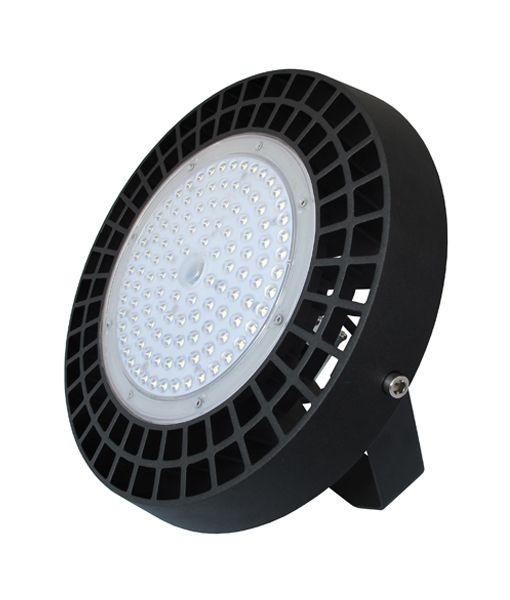

HB1714-200W LED UFO Highbay Light-IP67
Specification:

Input Voltage: AC85-265V 50/60Hz

Power: 200W

Dimension: Dia.350 mm

Luminous flux: 24000lm

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, Tempered glass

Body Color : Black (default)、Gray ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 100°

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temperature：-30~+50°C

IP Rating: IP67

LED driver Brand: ZH or Meanwell Driver

Dimming (Optional) ：3 in 1 dimming(PWM, 1-10V, Resistor).Dali

IK Class: IK08

Installation mode：Bracket with hook (default)
HB1713

Quick View

×

HB1713-120W LED UFO Highbay Light-IP67
Specification:

Input Voltage: AC85-265V 50/60Hz

Power: 120W

Dimension: Dia.270 mm

Luminous flux: 14400lm

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, Tempered glass

Body Color : Black (default)、Gray ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 100°

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temperature：-30~+50°C

IP Rating: IP67

LED driver Brand: ZH or Meanwell Driver

Dimming (Optional) ：3 in 1 dimming(PWM, 1-10V, Resistor).Dali

IK Class: IK08

Installation mode：Bracket with hook (default)
HB1707

Quick View

×

HB1707-200W LED UFO Highbay Light
Specification:

Input Voltage: AC85-265V 50/60Hz

Power: 200W

Dimension: Dia.330 mm

Luminous flux: 24000lm

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, PC diffuser

Body Color : Black (default)、Gray ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 60°/90°/120° available

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temperature：-30~+50°C

IP Rating: IP65

LED driver Brand: ZH & Meanwell Driver

Dimming (Optional) ：3 in 1 dimming(PWM, 1-10V, Resistor).Dali

IK Class: IK08

Installation mode：Chain (default), Pole or Bracket (optional)
HB1706

Quick View

×

HB1706-150W LED UFO Highbay Light
Specification:

Input Voltage: AC85-265V 50/60Hz

Power: 150W

Dimension: Dia.300 mm

Luminous flux: 18000lm

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, PC diffuser

Body Color : Black (default)、Gray ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 60°/90°/120° available

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temperature：-30~+50°C

IP Rating: IP65

LED driver Brand: ZH & Meanwell Driver

Dimming (Optional) ：3 in 1 dimming(PWM, 1-10V, Resistor).Dali

IK Class: IK08

Installation mode：Chain (default), Pole or Bracket (optional)
HB1705

Quick View

×

HB1705-100W LED UFO Highbay Light
Specification:

Input Voltage: AC85-265V 50/60Hz

Power: 100W

Dimension: Dia.260 mm

Luminous flux: 12000lm

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, PC diffuser

Body Color : Black (default)、Gray ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 60°/90°/120° available

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temperature：-30~+50°C

IP Rating: IP65

LED driver Brand: ZH & Meanwell Driver

Dimming (Optional) ：3 in 1 dimming(PWM, 1-10V, Resistor).Dali

Installation mode：Chain (default), Pole or Bracket (optional)

IK Class: IK08

Certificate : CE, ROHS, SAA,TUV
HB1703

Quick View

×

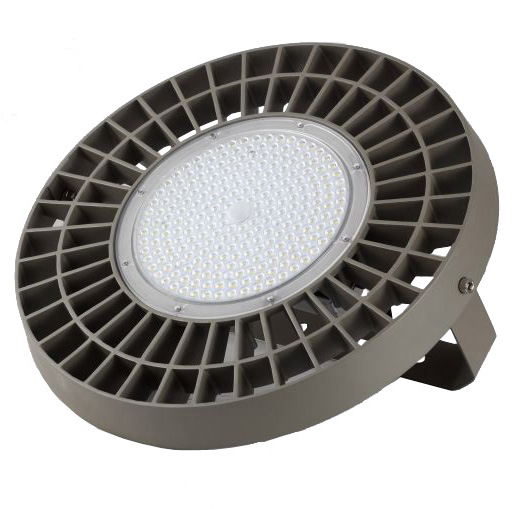

HB1703-200W LED UFO highbay Light
Specification:

Input Voltage: AC85-265V 50/60Hz

Power: 150W

Dimension: Dia.400mm

Luminous flux: 24000lmc

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, PC diffuser

Body Color : Grey (default)、Black ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 60°/90°/120° available

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temp.：-30~+50°C

IP Rating: IP65

LED driver Brand: ZH & Meanwell Driver

Mounting Options: Bracket & hooking hang

IK Class: IK08

Certificate : CE, ROHS, SAA,TUV
HB1702

Quick View

×

HB1702-150W LED UFO Highbay Light
Specification:

Input Voltage: AC85-265V 50/60Hz

Power: 150W

Dimension: Dia.400mm

Luminous flux: 18000lm

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, PC diffuser

Body Color : Grey (default)、Black ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 60°/90°/120° available

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temp.：-30~+50°C

IP Rating: IP65

LED driver Brand: ZH & Meanwell Driver

Mounting Options: Bracket & hooking hang

IK Class: IK08

Certificate : CE, ROHS, SAA,TUV
HB1701

Quick View

×

HB1701-100W LED UFO Highbay Light
Specification:

Input Voltage: AC85-265V 50/60Hz

Power: 100W

Dimension: Dia.360mm

Luminous flux: 12000lm

Lamp efficiency: 120lm/W

LED: High Lumen SMD 3030

Material: Die-cast aluminium body, PC diffuser

Body Color : Grey (default)、Black ( optional)

Light degradation rate: 25000h ≤ 30%

Color rendering index: Ra>85

Power factor: >0.95

Beam angle : 60°/90°/120° available

Rated life: ≥50000hrs

Color temperature: 3000K-6500K all available

Working temperature：-30~+50°C

IP Rating: IP65

LED driver Brand: ZH & Meanwell Driver

Mounting Options: Bracket & hooking hang

IK Class: IK08

Certificate : CE, ROHS, SAA,TUV, EMC, LVD
