CL1316 & CL1317 & CL1318 -LED Oyster Ceiling Lights_Xiamen JYG Optoelectronic Co., Ltd.

NEW

Specification :

Input Voltage: AC200-240V 50/60Hz

Shape Color: White

Rate Power: 12W & 18W & 24W

Size: Dia.290mm & Dia.350mm & Dia.415mm

Dimmable & Sensor : Available

PF : 0.95

Efficacy : 90Lumen/W

LED : SMD 2835 LED

CCT : 3000K / 4200K / 5000K / 6500K

CRI : 82

Material : Steel Plate +PMMA Diffuser

Installation: Surface mounted

Protection: ClassⅠ

IP Rating : IP20 or IP44

Description Downloads

Specification

Code	Size (mm)	Watt (W)	CCT & Lumens	CRI	PF	Protection
CL1316	∅290mm	12W	WW 950LM CW 1100LM	82	0.95	Class I
CL1317	∅350mm	18W	WW 1450LM CW 1600LM
CL1318	∅415mm	24W	WW 2000LM CW 2200LM

Feature:

• Ideal for kitchens, hallways and high traffic areas

• Surface mounted LED ceiling light.
• Simple, round design.
• Provides a uniform light-output using SMD LED technology.
• IP20 / IP44

• Steel base with toughened acrylic diffuser.

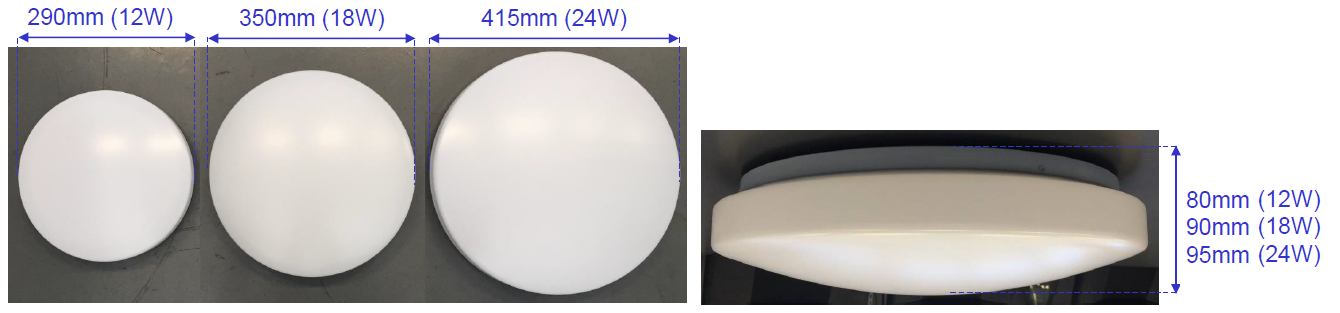

Dimension:

Packing:
