CL1314 & CL1315 Slim IP54 Tri-Colour Dimmable LED Oyster Lights

Item number: CL1314 & CL1315

Specification

Input Voltage: AC200-240V  50/60Hz

Shape Color: White

Rate Power:  15W & 24W

Size: Dia. 200mm & Dia.300mm

Dimmable : YES

PF : 0.95

Efficacy : 90Lumen/W

LED : SMD 2835 LED

CCT Changing: 3000K / 4200K / 6500K 3 in 1

CRI : 82

Material : Plastic housing +PMMA Diffuser

Installation: Surface mounted

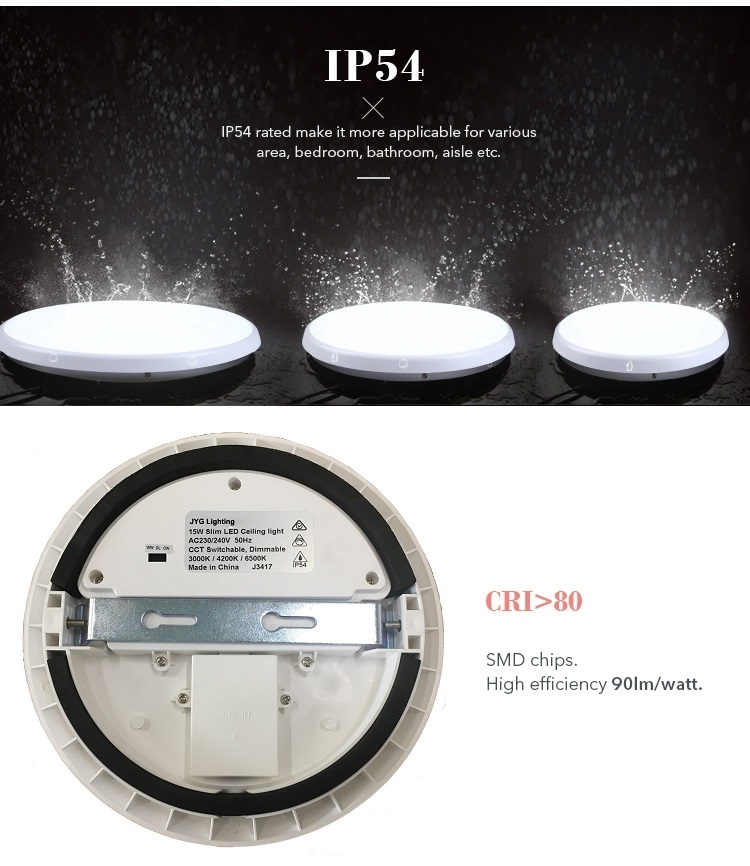

IP Rating IP54

Description Downloads

Specification:


Code

Size

(mm)

Watt

(W)

CCT & Lumens

CRI

PF

Dimmable

CL1314

200*H48

15W

3000K  1300LM

4200K  1500LM

6500K  1400LM

82

0.95

YES

CL1315

300*H40

24W

3000K  2100LM

4200K  2300LM

6500K  2200LM



Feature:


1.  Surface mounted LED Ceiling Light

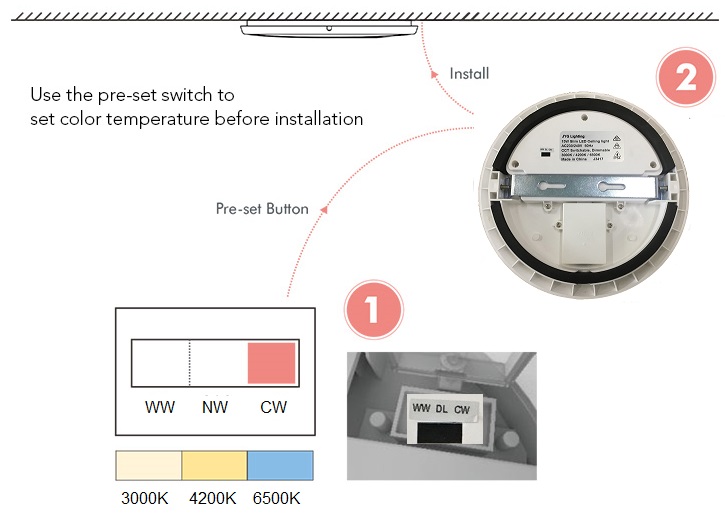

2.  CCT Switchable between 3000K,4200K & 6500K.

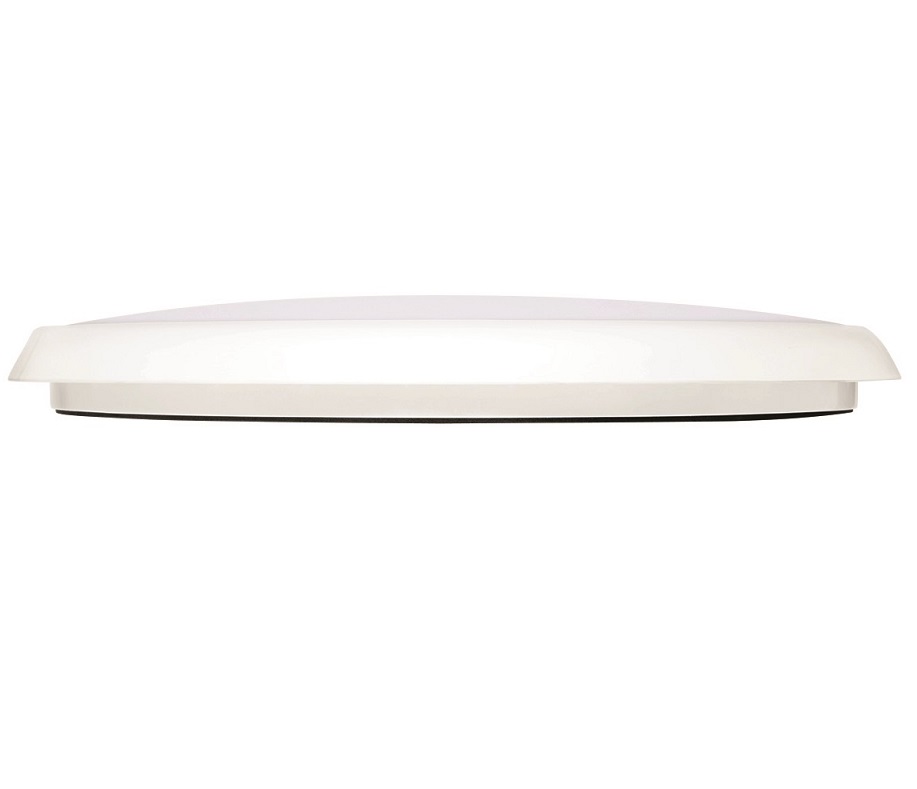

3.  Simple, Round and Slimline design.

4.  Provides a uniform light-output using SMD LED technology.

5.  Complete with driver, Dimmable and color switchable available .

6.  IP54 Water resistant rating Idea for bathrooms and alfresco areas

7.  Warranty: 3 Year  .

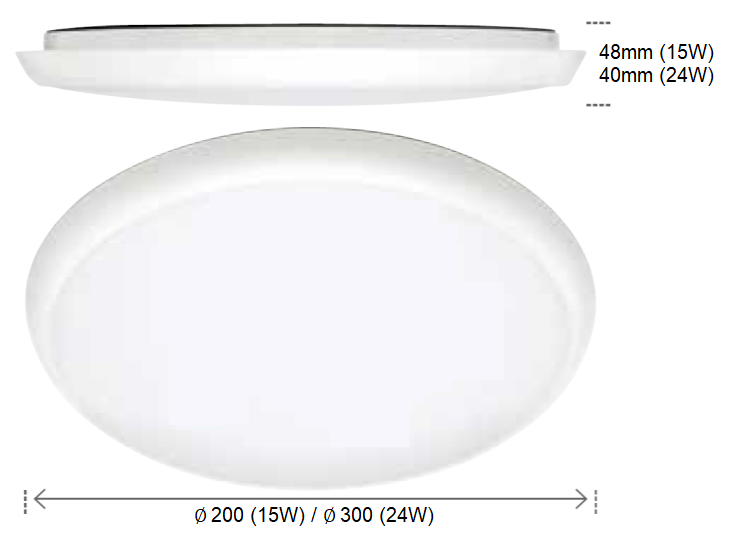

Dimension:

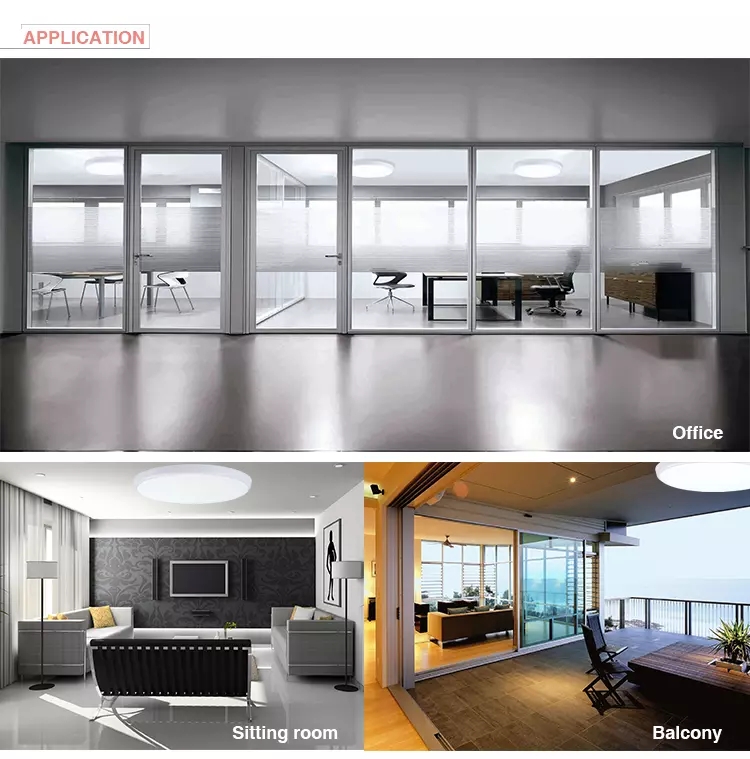

Application:



Packing

Code

NW/PCS

(KGS)

Color box

(mm)

Qty/CTN

(PCS)

GW/CTN

(KGS)

Outer Carton

(mm)

CL1314

0.42

205*55*205

20

12.00

580*430*230

CL1315

0.92

305*50*305

12

13.50

630*325*330
