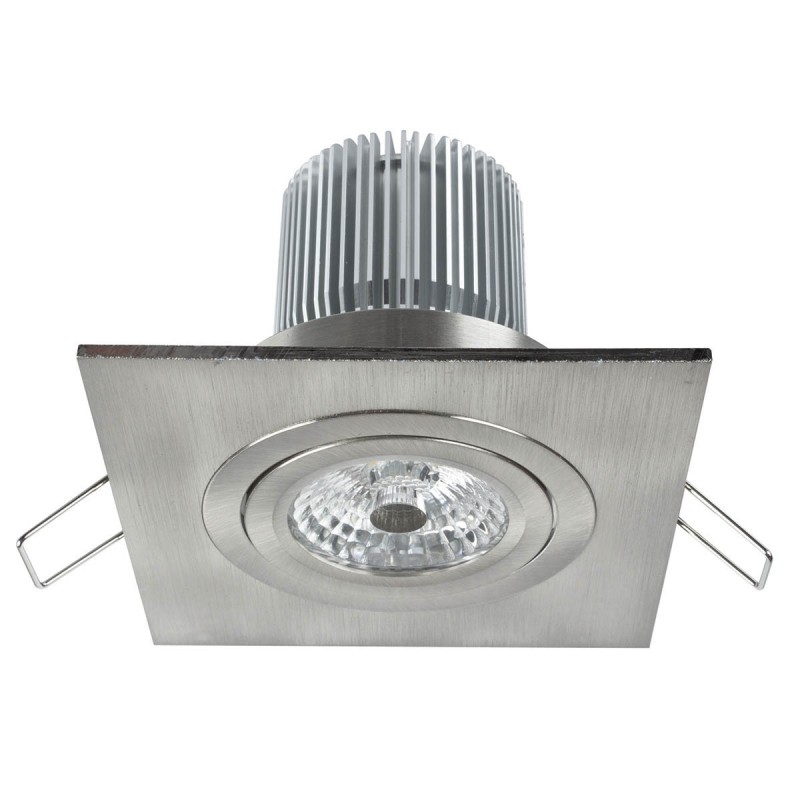

DL1139 10W Dimmable CCT COB Changable LED Downlight -Square

Item number: DL1139

Specification :

Input Voltage: AC200-240V  50/60Hz

Shape Color: White / Brushed Nickel / Sliver

Product size : L100* W100*H85mm

Cut out size:  70-93mm

Rate Power:  9W

Total power (incl.driver): 10W

Beam angle:  40° / 60°

Dimmable YES

PF 0.95

Efficacy : 95LM/W

Lumens :  800lm (3000K)

                900lm (4200K)

                850lm (6500K)

LED High lumen COB LED

CCT: 3000K / 4200K / 6500K in one Light

CRI : 82

Material Aluminium Heatsink +PMMA LENS

IP Rating : IP20


Description Downloads

Specification:

Code

Size

(mm)

Watt

(W)

CCT & Lumens

Cutout

(mm)

Beam

angle

CRI

Dimmable

Shape

DL1139

L100*W100*H85mm

10W

3000K   800lm

4200K   900lm

6500K   850lm

70-92

50°

82

YES

Square-

Fixed & Square

Features:

1.   CCT Switchable between Warm White (3000K), Natural White (4200K) & Cool light (6500K).
2.   Rated for IC-4 Abutted and Covered usage to allow for covering with thermal insulation.

3.   Gimbal or Fixed head downlight.

4.   High-grade aluminium construction.

5.   White , Brushed Nickel or Sliver powder coated finish.

6.   COB LED technology for superior light output.

7.   External dimmable LED driver.

8.   Flex & plug total 1m

9.   Long lasting up to 30,000 hours¹.

10.  2 Years Warranty.


Applications:

Exhibition halls, supermarkets and shopping malls, other indoor and commercial lighting, locations.

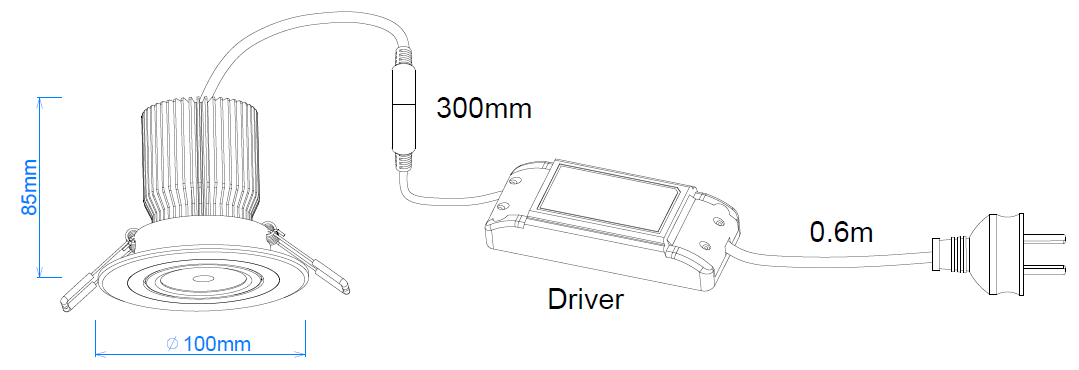

Dimension:


Packing:

Code

NW/PCS

(KG)

Color box

(mm)

Qty / CTN

(PCS)

GW/CTN

(KGS)

Outer carton

(mm)

DL1139

0.43

128*128*110

24

12.80

535*405*245
