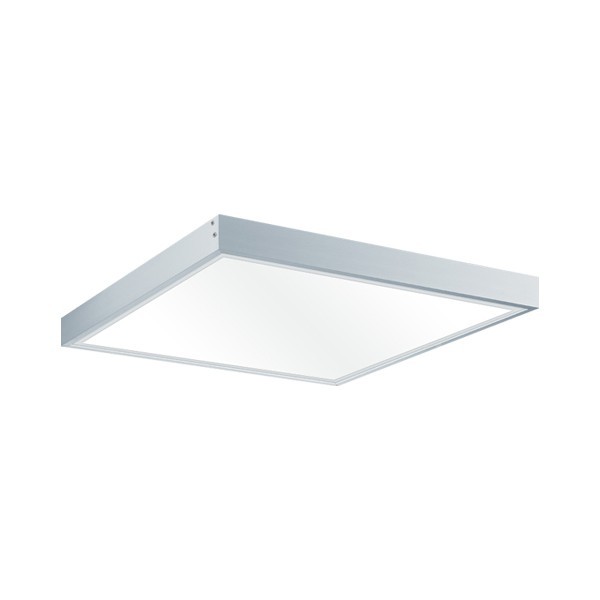

PL1405 -Surface Mounted LED PANEL LIGHT-600*600mm 40W

Item number: PL1405

Product Features:

Input voltage: 200~240V AC 50/60Hz

Material: aluminium body + PC diffuser

High grade aluminium, with white powder coated finish.

Wattage: 40W

Power factor: 0.95

Efficacy (lm/W):80LM/W

Lumens:WW: 3100lm,  CW: 3200lm

Lamp: SMD 2835 LED

CCT(K):3000K / 4200K / 5000K / 6500K

CRI:>83

Beam angle:120 degree

Dimmable:No

Life time: 35,000hrs

SAA approved LED driver and flex & plug. (L: 1200mm)

External driver with female joiner

Ambient temp: -20 to +40°C

MAX. Ta (Safety):50 degrees Celsius

Installation:Surface Mounted

IP Rating:IP20 indoor only

Description Downloads

Specification:

Code

Size

Watt

CCT (K)

Lumens(lm)

CRI

Beam

Dimmable

PL1405

600*600*50mm

40W

3000K  4200K 5000K 6500K

WW: 3100lm

CW: 3200lm

80

110

No

Feature:
LED light panels are a cutting edge solution in the lighting industry and are considered to be a revolutionary replacement for traditional fluorescent tubes. Our LED light panels use a high brightness quality LED chip modules as a light source which consume up to 70% less energy and can last up to ten times longer than conventional fluorescent tubes.
Designed to fit standard T-Bar ceilings.
SMD strip technology, which allows greater energy efficiencies and weight savings.
Accessories Kit: Suspension ,Surface Mounted, Recessed Option.
High grade aluminium, with white powder coated finish.
Long lasting up to 30,000 hours.
SAA approved LED driver and flex & plug.
High efficient and uniform light output.
3 Year Warranty.

Benefits:

Instant flicker free start, no stroboscopic effects, no ultraviolet or infrared radiation


Easy-installation for fast retro-fitting. Suitable for surface mount and suspending installation



Applications:

A widely used product for illuminating and decorating commercial premises,

designed for hotels, office, meeting room, home interior and school classrooms etc


Packing:


Code

NW/PCS

(KG)

Color box Size
(mm)

QTY/CTN

GW/CTN

(KG)

Shipping carton

Size (mm)

PL1405

4.90

L640×W640×H90

3 PCS

17.00

L660×W660×H300
