PL1402-Surface mounted LED PANEL LIGHT-300*1200mm 40W

Item number: PL1402

Product Features:

Input voltage: 200~240V AC 50/60Hz

Material： aluminium body + PC diffuser

High grade aluminium, with white powder coated finish.

Wattage: 40W

Power factor: 0.95

Efficacy (lm/W)：80LM/W

Lumens：WW: 3100lm, CW: 3200lm

Lamp: SMD 2835 LED

CCT（K）：3000K / 4200K / 5000K / 6500K

CRI：>83

Beam angle：120 degree

Dimmable：No

Life time: 35,000hrs

SAA approved LED driver and flex & plug. (L: 1200mm)

External driver with female joiner

Ambient temp: -20 to +40°C

MAX. Ta (Safety):50 degrees Celsius

Installation：Surface Mounted

IP Rating：IP20 indoor only

Description Downloads

Specification:

Code

Size

Watt

CCT (K)

Lumens(lm)

CRI

Beam

Dimmable

PL1402

299*1202*50mm

40W

3000K 4200K 5000K 6500K

WW: 3100lm

CW: 3200lm

80

110

No

Feature:
LED light panels are a cutting edge solution in the lighting industry and are considered to be a revolutionary replacement for traditional fluorescent tubes. Our LED light panels use a high brightness quality LED chip modules as a light source which consume up to 70% less energy and can last up to ten times longer than conventional fluorescent tubes.
Designed to fit standard T-Bar ceilings.
SMD strip technology, which allows greater energy efficiencies and weight savings.

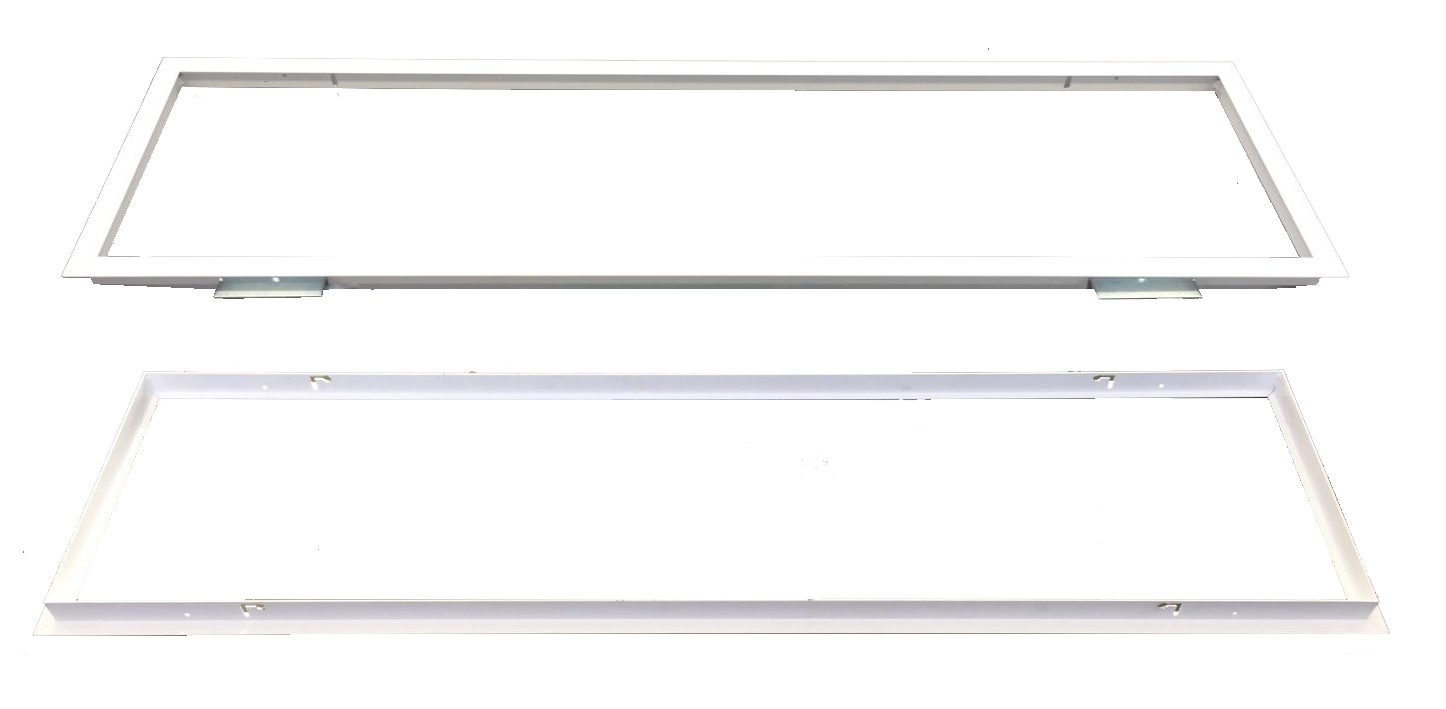

Accessories Kit: Suspension ,Surface Mounted, Recessed Option.
High grade aluminium, with white powder coated finish.
Long lasting up to 30,000 hours.
SAA approved LED driver and flex & plug.
High efficient and uniform light output.
3 Year Warranty.

Benefits:

Instant flicker free start, no stroboscopic effects, no ultraviolet or infrared radiation

Easy-installation for fast retro-fitting. Suitable for surface mount and suspending installation

Applications:

Designed for hotels, office, meeting room, home interior and school classrooms.

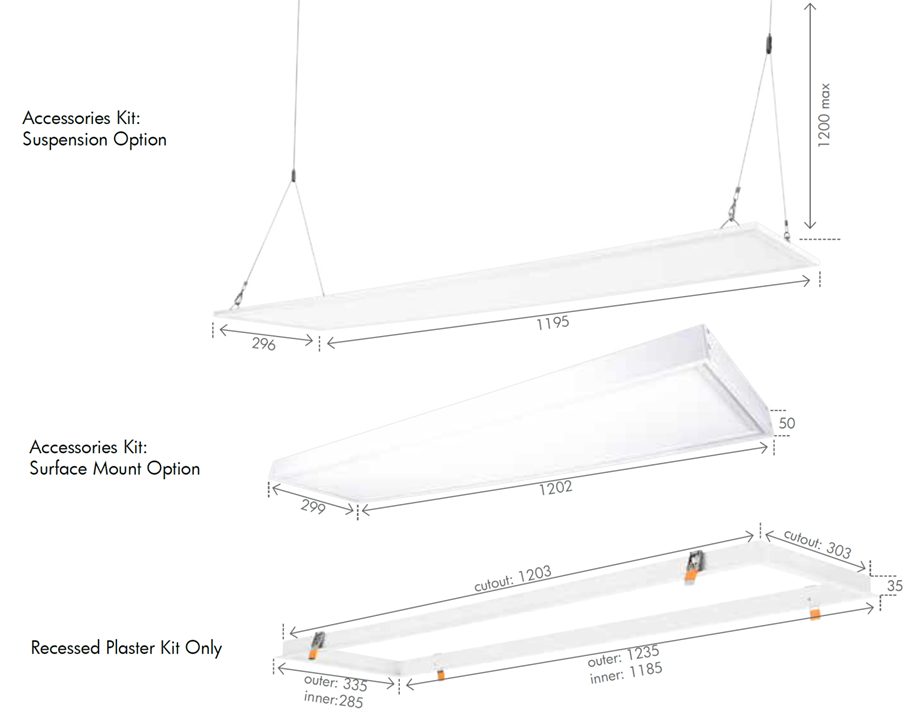

Dimension:

Packing:

Code	NW/PCS (KG)	Color box Size (mm)	QTY/CTN	GW/CTN (KG)	Shipping carton Size (mm)
PL1401	3.5	L1275×W330×H55	4 PCS	16.50	L1295×W245×H355
PL1402	5.60	/	1 PCS	6.50	L1250×W350×H95
PL1403	0.85	L1275×W370×H65	6 PCS	9.00	L1300×W410×H400
