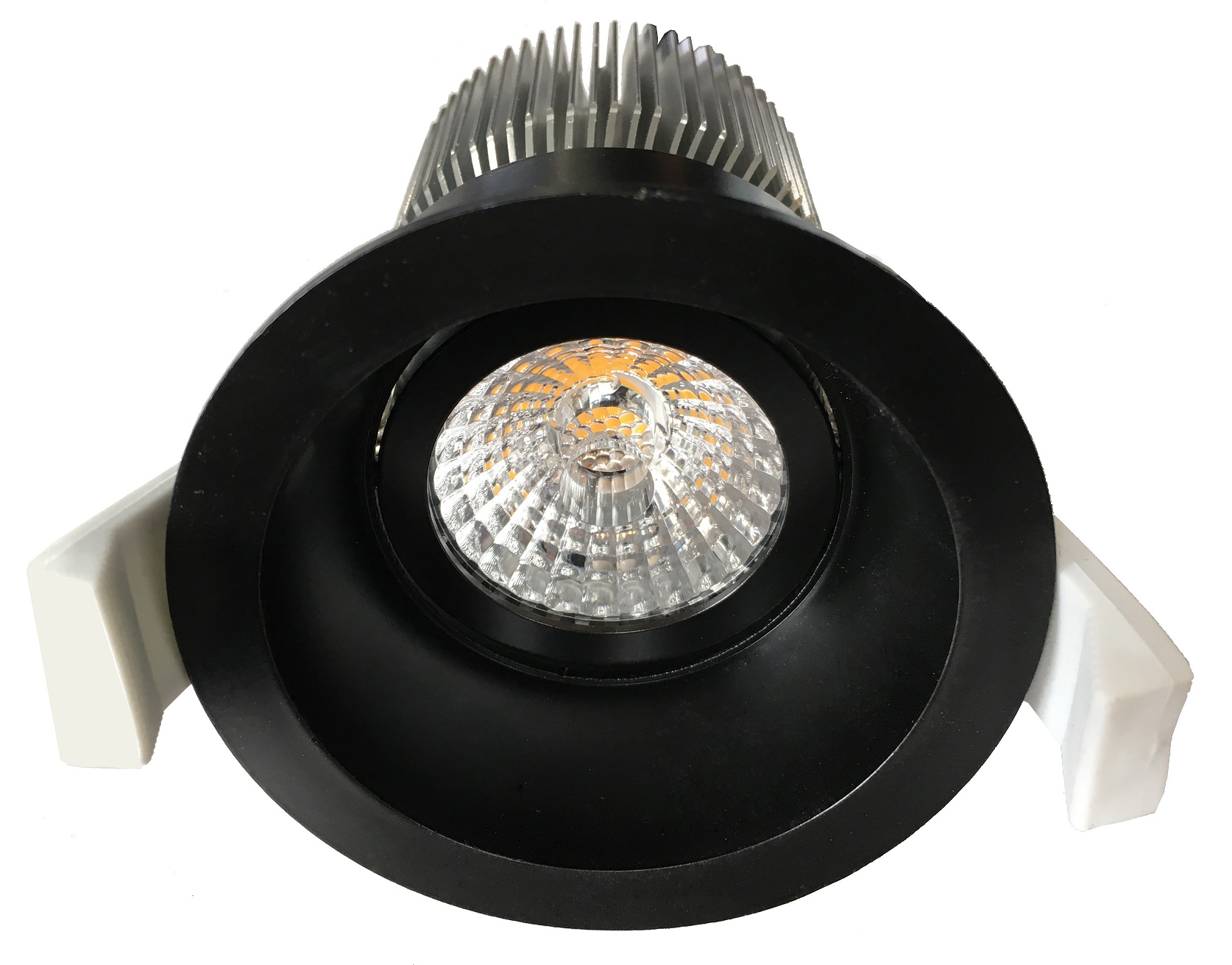

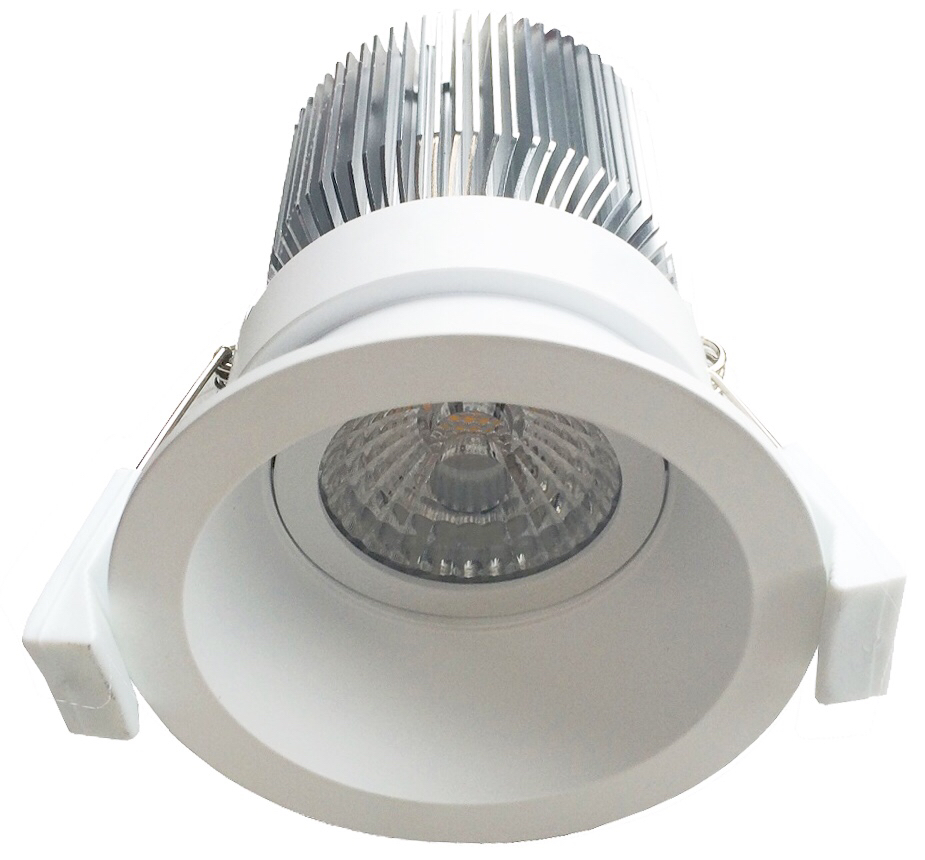

DL1114 & DL1115 10W Dimmable LED Downlight

Item number: DL1114 & DL1115

Specification :

Input Voltage: AC200-240V  50/60Hz

Shape Color: White or Black

Rate Power:  8W & 9W

Total power (incl.driver): 9W &10W

Beam angle:  50°

Dimmable : YES

PF : 0.95

Efficacy : 95LM/W

LED : High lumen COB LED

CCT: 3000K / 4000K /5000K / 6500K

CRI : 82

Material : Aluminium Heatsink +PMMA LENS

IP Rating IP20


Description Downloads

Specification:

Code

Size

(mm)

Watt

(W)

CCT

(K)

Lumens

(LM)C

Cutout

(mm)

Beam

angle

CRI

PF

Dimmable

DL1114

80* H97

9W

3000K

4200K

5000K

6500K

WW 780lm

CW 850lm

70

50°

82

0.95

YES

DL1115

100* H97

10W

WW 850lm

CW 900lm

90


Feature:


1.   High quality COB LED technology for superior light output, LM80 Approved .

2.   Rated for IC-4 Abutted and Covered usage to allow for covering with thermal insulation.

3.  High-grade aluminium construction with gimbal design.

4.  SAA, C-Tick, CE, RoHS Approved

5.  Dimmable led driver , flex & plug total 1m

6.  Fits 70 & 90mm cut outs and ideal for retro-fit applications.

7.  White or Black powder coated finish.

8.  It's easy to install and perfectly replacing the traditional lighting.

The products have been tested compatible with most different brand dimmers.

9.  Long lasting up to 35,000hrs*.

10. 3 years Warranty .


Applications:

Exhibition halls, supermarkets and shopping malls, other indoor and commercial lighting, locations.

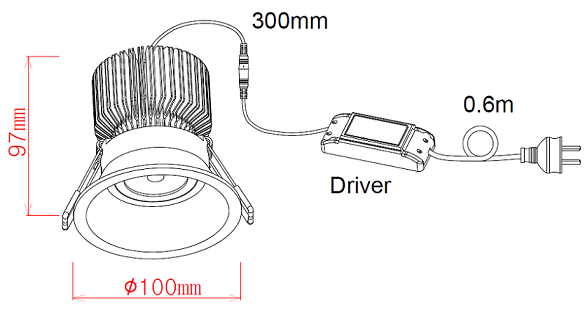

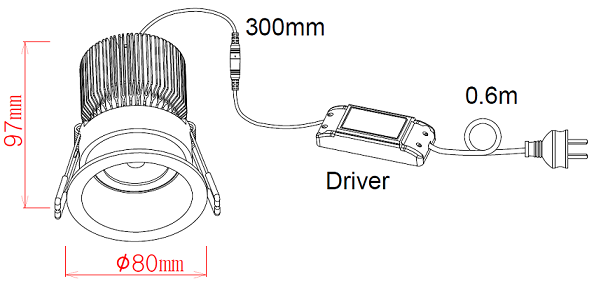

Dimension:






Packing:


Code

GW/PCS

(KG)

Color box

(mm)

Qty / CTN

(PCS)

GW/CTN

(KGS)

Outer carton

(mm)

DL1141

0.385

110*110*140

24

12.00

460*350*305

DL1142

0.40

130*110*140

24

12.00

460*410*305
