BL1502 &BL1503&1504&BL1505 LED SLIMLINE Batten Light

Item number: BL1502 & BL1503 & BL1504 & BL1505

Product Features:

Input voltage: 200~240V AC 50/60Hz

Material: aluminium body + PC diffuser

High grade aluminium, with white powder coated finish.

Length: 600mm & 900mm & 1200mm & 1500mm

Wattage: 18W & 27W & 36W & 45W

Power factor: 0.95

Efficacy (lm/W):80LM/W

Lamp: SMD 2835 LED

CCT: 3000K/ 42000K / 5000K / 6500K

CRI:>83

Beam angle:100 degree

Dimmable:No

Life time: 35,000hrs

SAA approved LED driver and Terminal block

Ambient temp: -20 to +40°C

MAX. Ta (Safety):50 degrees Celsius

Installation:Surface Mounted

IP Rating:IP20 indoor only


Description Downloads

Specification:

Code

Size

Watt

CCT (K)

Lumens(lm)

CRI

Beam angle

Dimmable

BL1502

600*80*28mm

18W

3000K  4200K

5000K 6500K

WW 1500LM

CW 1600LM

80

100

No

BL1503

900*80*28mm

27W

WW 2300LM

CW 2400LM

BL1504

1200*80*28mm

36W

WW3200LM

CW 3300LM

BL1505

1500*80*28mm

45W

WW 4100LM

CW 4200LM



Features:

LED battens are a perfect replacement for those old fluorescent batten fittings, and provide a much more aesthetic fixture.
• Elegant slimline profile.
• Aluminium body with polycarbonate end caps and diffuser.
• SMD technology allows greater energy efficiencies and weight savings. LM-80 approval.
• Long lasting up to 25,000 hours.
• SAA approved.
• High efficient and uniform light output.
• IP20 Indoor rating only.
• Includes mounting brackets and screws and terminal block for supply connection
• 2-Year Replacement Warranty

Benefits:
• Instant flicker free start,no stroboscopic effects, no ultraviolet or infrared radiation
• Easy-installation for fast retro-fitting. Suitable for surface mount and suspending installation

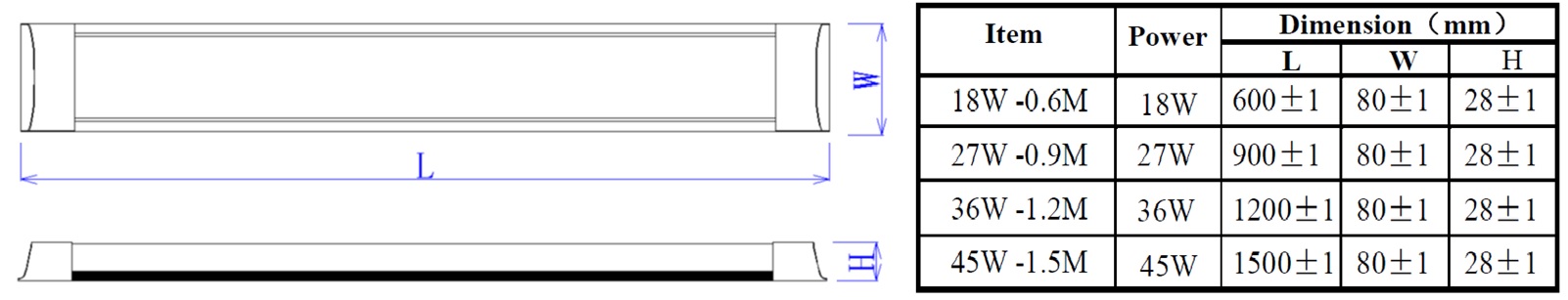

Dimension:



Applications:

General commercial interiors, corridors, warehousing, garage and indoor storage areas


Packing


Code

   NW/PCS

(KG)


Inner box Size
(mm)

    QTY/CTN

   GW/CTN

(KG)

Shipping carton

Size (mm)

BL1502

0.40

L630×W90×H52

  15 PCS

8.50

L65×W290×H290

BL1503

0.56

L93×W90×H45

  15 PCS

11.50

L95×W290×H205

BL1504

0.75

  L1230×W90×H45

  15 PCS

14.50

L1250×W290×H205

BL1505

0.95

  L1530×W90×H45

  15 PCS

17.50

L1550×W290×H205
